- IP44 CEE plugs are intended for protection against objects larger than 1 mm and water splashes from any direction.
- The electrical rating and pin configuration must match the equipment, supply system, and destination market.
- An IP44 rating does not cover immersion, water jets, chemical exposure, or every form of mechanical damage.
- Outdoor installations require correct cable selection, secure coupling, strain relief, and routine inspection.
- For recurring moisture, washdown, dust, or severe impact, a higher protection level or a different connector system may be necessary.
Choosing the right CEE industrial plug requires more than comparing a product photograph. The IP44 CEE plug classification is defined by two protection digits under IEC 60529: the first digit addresses solid-object protection and the second addresses water protection. This guide explains how to interpret the rating, verify electrical compatibility, assess outdoor conditions, and avoid common selection errors.
What Does an IP44 CEE Industrial Plug Rating Mean?
IP44 describes limited ingress protection, not complete weatherproofing. The first digit, 4, indicates protection against solid foreign objects larger than 1 mm. The second digit, 4, indicates protection against splashing water from all directions. The rating system is established by IEC 60529, the international standard for degrees of protection provided by enclosures.
| Position | IP digit | Protection indicated | Practical meaning |
|---|---|---|---|
| First | 4 | Solid objects larger than 1 mm | Helps limit entry of many small tools, wires, and particles, but is not dust-tight |
| Second | 4 | Water splashes from all directions | Suitable for limited splash exposure when correctly installed and maintained |
An IP44 connector should not be selected for immersion, directed high-pressure cleaning, persistent water pooling, or an enclosure exposed to unusually heavy contamination unless the complete assembly has been evaluated for those conditions. The plug, socket, cable entry, cover, and coupling arrangement should be considered as one system.
How to Match the Electrical Rating
The plug’s electrical rating must match the supply and the equipment rather than merely the equipment’s physical socket. Confirm rated voltage, rated current, number of poles, earthing arrangement, frequency, phase configuration, and cable termination requirements before ordering.
Check voltage and current first
Industrial connectors in the IEC 60309 family are available in multiple electrical configurations. The relevant IEC 60309 series covers plugs, socket-outlets, connectors, appliance inlets, and related accessories for industrial applications. A connector that fits mechanically may still be electrically unsuitable.
Use the equipment nameplate and installation documentation as the starting point. If the equipment manufacturer specifies a connector family, retain that configuration unless a qualified electrical professional approves an alternative. Never select a higher-current connector as a substitute for checking conductor size, protective devices, terminals, and the actual load.
Confirm poles, phase, and earth
Pin count and clock-position coding are compatibility controls, not cosmetic features. A CEE industrial plug may be configured for different phase systems, neutral arrangements, and protective-earth requirements. Compare the plug with the matching socket and verify that the intended supply has the same electrical architecture.
- Read the equipment label and installation diagram.
- Confirm the number of poles and the presence of neutral and protective earth where required.
- Check the connector’s voltage marking and frequency against the destination supply.
- Verify that the cable’s conductor size and insulation are suitable for the expected load and environment.
- Have installation and testing completed by a competent person under the applicable local rules.
When Is an IP44 CEE Plug Suitable Outdoors?
IP44 is most appropriate for sheltered or moderately exposed outdoor connections where splash protection is needed but immersion and severe washdown are not expected. Typical examples include temporary event equipment, garden machinery in protected areas, light construction equipment, mobile workshop tools, and extension assemblies used away from standing water.
Consider the real installation rather than the label alone. A plug mounted below a roof overhang may experience occasional rain, while a connector lying on wet ground can encounter pooling water, mud, and mechanical stress. A connection exposed to coastal salt, fertilizers, oils, solvents, or concrete slurry may also require material and sealing compatibility beyond the IP code.
Outdoor suitability depends on the complete assembly. A correctly rated plug can be undermined by a damaged gasket, an incorrectly stripped cable jacket, an unsecured coupling, a poor gland, or a socket left open without its cover. The finished connection should prevent unnecessary cable tension and should not be positioned where vehicles, doors, water runoff, or sharp edges can damage it.
IP44 versus higher protection levels
Choose a higher-rated solution when water exposure is more aggressive than splashing. IP44 is not automatically the best choice for pressure washing, uncovered permanent outdoor distribution, flooded areas, or locations where dust accumulation is significant.
| Exposure condition | IP44 may be considered | Reassess or specify another solution | Reason |
|---|---|---|---|
| Occasional rain under shelter | Yes, after checking the complete assembly | Not necessarily | Exposure is mainly intermittent splash |
| Standing water or immersion risk | No | Yes | IP44 does not indicate immersion protection |
| High-pressure washdown | No | Yes | Water impact exceeds ordinary splash conditions |
| Heavy dust or conductive particles | Only after risk assessment | Often | The first IP digit is not dust-tight |
| Frequent handling on a construction site | Possible with suitable mechanical design | Check impact, flexing, and abrasion separately | IP coding does not fully describe mechanical durability |
CEE Industrial Plug Selection Checklist
A short verification sequence prevents most purchasing mistakes. Use the following checklist before comparing suppliers or requesting an OEM quotation.
- Define the application: identify whether the connection is for a fixed installation, mobile equipment, temporary power, an extension lead, or a cable reel.
- Record the supply: capture voltage, current, phase, frequency, pole arrangement, and earthing requirements from the equipment documentation.
- Assess the environment: note rain, splash, dust, chemicals, temperature, ultraviolet exposure, impact, abrasion, and cleaning method.
- Check the cable interface: confirm cable outer diameter, conductor construction, flexibility, bending conditions, and strain-relief requirements.
- Verify the mating component: ensure the plug and socket use the same compatible configuration and are intended to be coupled in the proposed orientation.
- Review compliance documents: request applicable test reports, declarations, drawings, material information, and destination-market documentation.
- Plan inspection: establish checks for cracks, loose terminals, gasket damage, overheating, contamination, and cable jacket deterioration.
Material, Cable, and Mechanical Considerations
The enclosure material and cable construction affect service life as much as the IP label. A rugged industrial plug commonly requires an impact-resistant body, secure terminals, a reliable cable clamp, and sealing components that remain stable in the intended temperature range.
Flexible rubber cable is often considered for outdoor and construction use because the cable must tolerate movement, bending, and handling. PVC cable may be suitable for lighter or more controlled applications, but the choice must follow the cable manufacturer’s ratings and the installation conditions. Do not infer cable suitability from the plug body alone.
Strain relief is especially important on mobile equipment. Pulling the cable should not transfer force to the terminals. The bend radius should be respected, the jacket should remain intact at the entry, and the cable should be supported so that the plug is not used as a carrying handle.
For a cable reel, evaluate the reel enclosure, winding method, cable length, thermal behavior, and intended load together. A plug rated for an industrial environment cannot compensate for an overloaded reel, an undersized cable, or poor heat dissipationInstallation and Maintenance for Outdoor Industrial Plugs
Correct installation preserves the protection claimed by the connector. Follow the manufacturer’s assembly instructions, use the specified cable range, tighten terminals correctly, and ensure that covers and seals are fully seated.
Before each use in a demanding environment, inspect the plug and socket for visible damage, contamination, loose parts, and signs of heat. Disconnect damaged equipment from service rather than relying on tape, sealant, or improvised covers. Keep couplings clean and avoid dragging the connector across abrasive surfaces.
Electrical safety rules vary by jurisdiction and application. In the United States, OSHA requirements for electrical installations address issues such as grounding, protection, and suitable equipment in 29 CFR 1926.404. In the United Kingdom, the Health and Safety Executive electrical safety guidance provides practical information for workplaces. These sources do not replace local engineering review, but they illustrate why installation conditions and protective measures must be assessed together.
Common Selection Errors
The most frequent mistake is treating IP44 as a universal outdoor approval. Other errors include choosing by ampere marking alone, ignoring the mating socket, overlooking cable diameter, and failing to consider how the connector will be cleaned or stored.
| Error | Why it creates risk | Better decision | Verification point |
|---|---|---|---|
| Choosing by appearance | Similar bodies may have different electrical configurations | Match markings and drawings | Voltage, current, poles, and earthing |
| Assuming IP44 is waterproof | Splash protection is not immersion protection | Match the second IP digit to exposure | Rain, pooling, jets, and washdown |
| Ignoring cable entry | A poor gland can compromise sealing and strain relief | Match cable diameter and assembly method | Jacket, clamp, and bend condition |
| Using an adapter without review | Adapters can introduce compatibility and protection problems | Use the correct mating connector | Manufacturer documentation and local rules |
| Skipping routine checks | Damage and overheating may develop during service | Inspect before use and remove defects | Body, contacts, seal, terminals, and cable |
How to Compare Suppliers
A reliable supplier should provide verifiable technical information rather than only a product image and a nominal rating. Request a dimensional drawing, wiring configuration, material description, cable range, test documentation, packaging information, and the intended market standard.

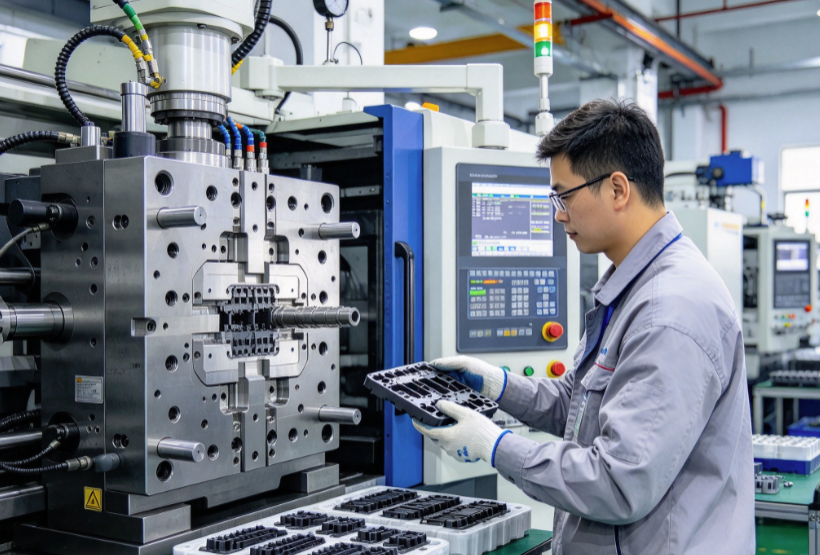

For private-label or volume projects, ask whether the supplier can control tooling, incoming materials, assembly consistency, electrical testing, and final inspection. Confirm sample approval procedures before mass production. A documented change-control process is useful when the connector will be integrated into a branded extension lead, cable reel, or equipment kit.
Supplier experience should be judged against the application. A retail plug may be adequate for light-duty use, while an industrial distributor or engineering buyer may need repeatable specifications, batch traceability, export documentation, and coordinated packaging. The correct choice is the one that satisfies the electrical, environmental, mechanical, and commercial requirements together.
FAQ
Is an IP44 CEE plug waterproof?
No. IP44 indicates protection against solid objects larger than 1 mm and splashing water from all directions. It does not indicate protection against immersion, standing water, or high-pressure water jets.
Can an IP44 CEE plug be used in the rain?
It may be suitable for limited rain or splash exposure when the complete assembly is correctly installed, coupled, supported, and maintained. Do not place it in pooling water or assume that an exposed connection is suitable for every weather condition.
What should I check besides the IP rating?
Check voltage, current, frequency, phase, pole arrangement, earthing, cable size, cable diameter, temperature, impact, chemicals, ultraviolet exposure, cleaning method, and the compatibility of the mating socket.
Can I use a higher-current plug on lower-current equipment?
Not automatically. The installation must still have compatible conductors, terminals, protective devices, equipment markings, and a correctly matched socket. A higher-current connector does not correct an unsuitable supply or cable.
Is CEE the same as IEC 60309?
CEE is commonly used in the market for industrial connectors associated with the IEC 60309 family. Always verify the exact standard, configuration, markings, and destination-market requirements in the product documentation.
How often should an outdoor industrial plug be inspected?
Inspect it before use in mobile or demanding applications and follow the site’s preventive-maintenance program for fixed equipment. Increase inspection frequency after severe weather, impact, chemical exposure, overheating, or cable damage.
What documents should I request from a manufacturer?
Ask for technical drawings, ratings, wiring information, cable range, material details, applicable declarations or test reports, sample approval records, packaging specifications, and change-control information. The exact document set depends on the product and destination market.
About the Manufacturer
Founded in 1986, Soyang Group develops electrical connection and control products including industrial plugs and sockets, timers, extension leads, cable reels, and cable-management accessories. Its in-house development and testing capabilities support standard, industrial, OEM, and ODM programs for export-oriented customers. Buyers can discuss application requirements, documentation, packaging, and sample evaluation with the technical team before placing a production order.
